MineMatchTM Frequently Asked Questions

This page contains answers to common questions handled by our support staff.








WHAT IS A MINERAL DEPOSIT INSTANCE?

A mineral deposit instance is mineralisation that exists, or existed (if it is mined out) somewhere in the world.  It could be a mineral occurance, a prospect, a mine, or a mined out mine.

Back to Top

WHAT IS A MINERAL DEPOSIT MODEL?

A mineral deposit model can be viewed as "systematically arranged information describing the essential attributes (properties) of a class of mineral deposits" and may be empirical (descriptive) or theoretical (genetic) (Cox et al (1986)).

The MineMatch representation of a model is the collection of all the attributes considered relevant to the characterisation of a mineral deposit type, and the frequency with which they are expected in a typical instance of the the model.  While it is primarily focused on empirical attributes, such as observable mineral assemblages, certain genetic attributes may also be included in descriptions, such as "genetic setting".

Considerable scope exists for recording genetic interpretations within the "Comments" field for each model attribute in MineMatch.  These comments are not used during comparisons (similarity ranking ).

You may view a tabular presentation of the USGS Cu Au Porphyry model (semantic net) here, and a reduced graphical view of the USGS Algoma Iron model here.  (Within the MineMatch system, the hierarchical arrangement of descriptive attributes may be expanded and collapsed in much the same way as nested directories on a computer system.)

Back to Top

HOW DO I SELECT AN INSTANCE OR MODEL TO COMPARE WITH OTHER INSTANCEs OR MODELs?

To select an instance or model for comparison with a number of other instances or models, simply make a double left mouse-click on the model or instance of your choice. (This can be done on either side of the centre-bar on the control panel.)  The chosen model or instance will appear in the "In Focus" window, which will pop to the surface of your screen.  If you selected the wrong one, simply click in the appropriate tab to take you back to the models or instances list of interest, and double-click the desired object.

To see an screenshot demonstrating where to click, click here.

Back to Top

HOW DO I INDICATE WHAT I WANT TO COMPARE IT TO?

To select the targets of your comparison exercise, simply click in the checkboxes next to the models or instances to be compared.  You can select for comparison all instances or models in a database by clicking on the upper left checkbox.  Note that comparisons will be carried out on all objects selected in both the "system" and "user" lists, even though only one of them can be tabbed to display at a time.

To see a screenshot demonstrating where to click, click here.

Back to Top

WHAT CAN I DO WITH THE RESULTS OF A COMPARISON?

You can do the following with comparison results after reviewing them visually:

  1. Print them out directly, which provides the most compact listing of compared attributes, but long comments will not wrap nicely inside columns.

  2. Transfer them to an HTML file, which wraps long text inside a field nicely, and which can be printed out with the same word-wrap advantage.  (See example.)

  3. Save them to an EXCEL file, which is given a quasi- hierarchical appearance.

All of the above can eventually provide hardcopy which is ideal for reference from within a report, and which MineMatch users often include in report appendices, particularly in the context of due diligence investigations.

.Back to Top

HOW DO I FIND OUT MORE ABOUT AN INSTANCE OR MODEL?

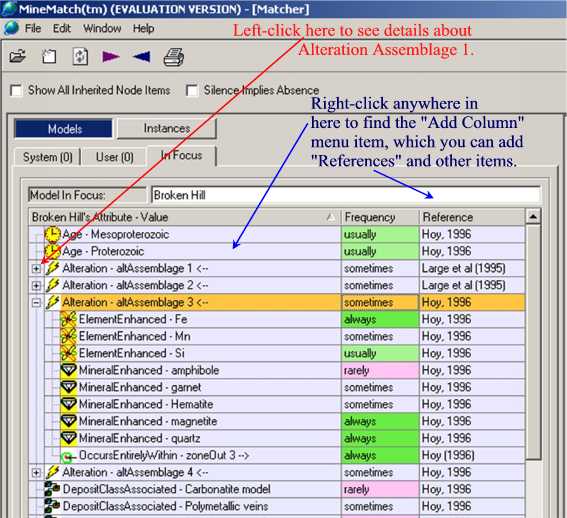

If the instance or model of interest is not already "In Focus", double-click on it, and it will appear in the "In Focus" window, which pops to the top layer on the screen.  You will be presented with the top level attributes of the model or instance of interest.  You may explore lower levels of detail in the description by clicking on any [+] signs, which indicate that further detail is available.  (See example).

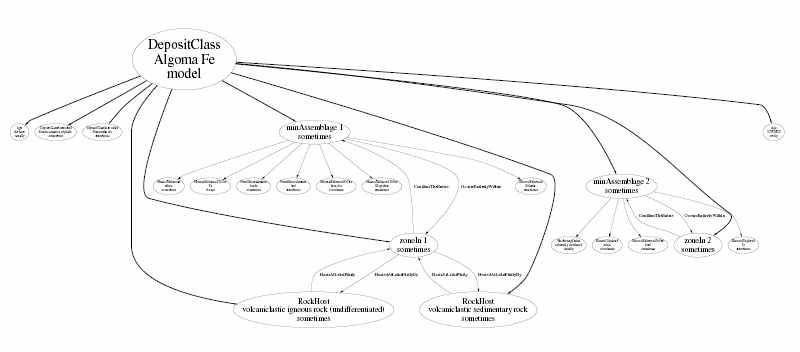

Alternatively, to see a Semantic Net diagram showing all the recorded attributes of the object "In Focus", right-click anywhere in the "In Focus" window, and choose the "Create GraphViz Diagram ..." option.  Note that this requires the prior installation of the free Adobe "SVG Viewer" plug-in to your internet browser.  This is easily obtained from www.adobe.com. (See example which does not require the SVG viewer  .... and is therefore a much lower quality image.  Once installed, the SVG Viewer plug-in allows zooming and panning of the diagram, with no loss of resolution. Click here if you already have the SVG Viewer installed.)

Back to Top

HOW DO I CREATE NEW DESCRIPTIONS?

To create new model or instance descriptions, you first need to create or open an existing "User Database". (Consult the MineMatch HELP documentation, accessible from the HELP button on the main menu bar, for detailed instructions.)

If the "User Database" contents are not already displayed on the screen, click on the "User" tab to display them, right-click anywhere in the "User" window, and select the "Edit User Instances..." (or models) option.  (Further details appear in the HELP documentation)

Finally, click on the "Create Instance" (or model) button, and start entering the instance's attributes but selecting attributes and their values from the available drop-down menus.

Note that before attempting the above you should become familiar with the MineMatch framework for describing mineral deposits, which is described in Appendix 1 of the HELP documentation.

Back to Top
